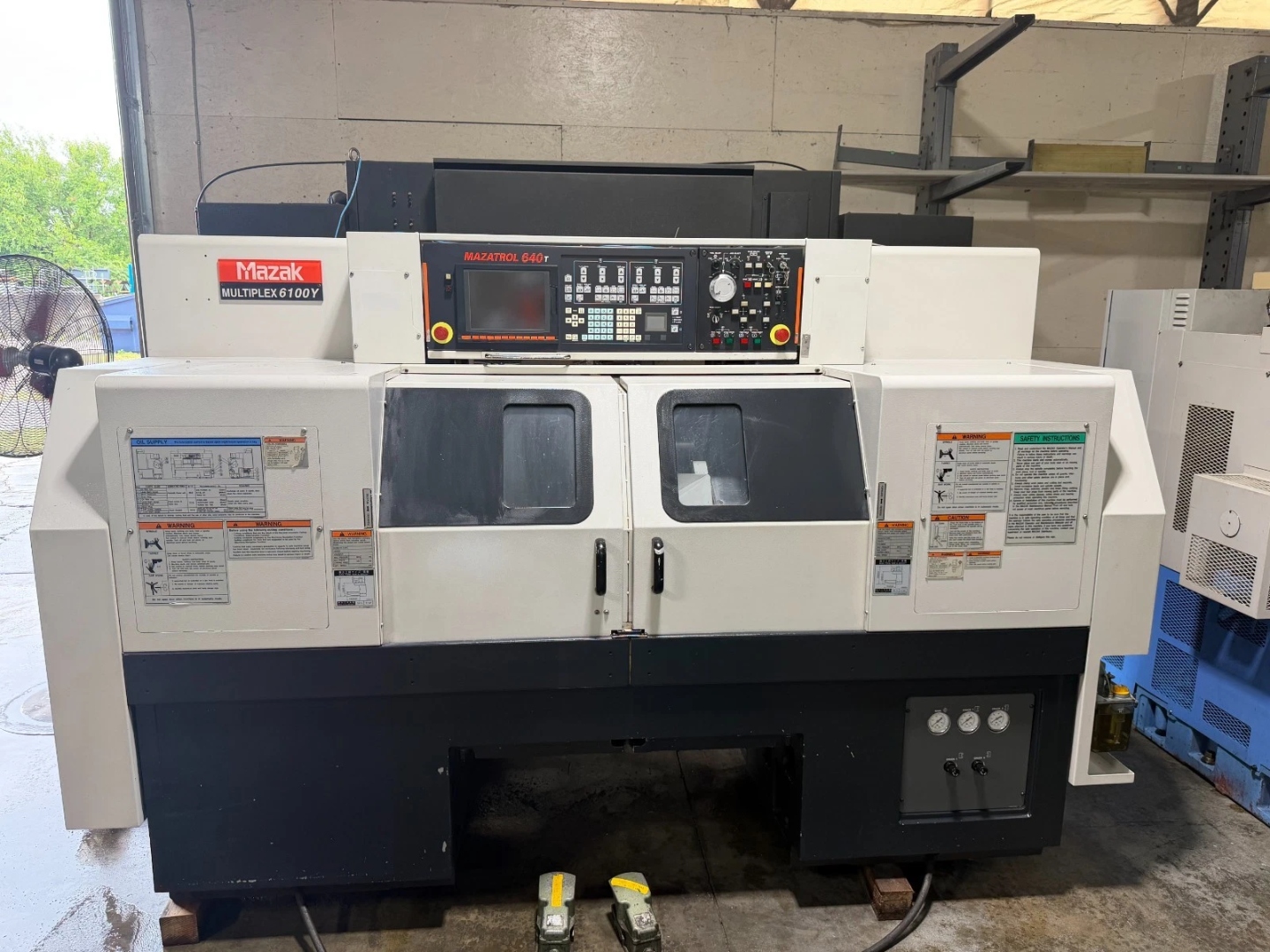

Used 2005 Mazak Multiplex 6100Y twin-spindle CNC lathe for sale

For sale: a 2005 Mazak Multiplex 6100Y — a twin-spindle, twin-turret CNC turning center with full Y-axis capability on both turrets. This machine is in mint condition, has low hours, and is loaded with tooling ready to run. It comes with a 30-day guarantee and buyer’s inspection is welcome.

The Multiplex 6100Y is one of Mazak’s most capable done-in-one turn-mill platforms. Two identical opposed spindles, two 12-position turrets with live tooling on each, and Y-axis on both turrets — meaning the machine can complete complex two-sided turned-and-milled parts in a single cycle with no secondary operations. Mazak positions the Multiplex series as its 2-spindle / 2-turret CNC turning center for mid-size lot production.

Why buyers look for a Multiplex 6100Y

• Done-in-one production. Two identical opposed spindles + two 12-position turrets with live tooling = fully finished parts in one cycle. No second op, no re-fixturing, no queue between operations.
• Y-axis on both turrets. True Y-axis milling on both the upper and lower turrets — off-center holes, flats, keyways, pockets, and cross-drilled features without a separate machining center.
• Twin-spindle “link” mode. Both chucks can grip the same bar at once for exceptionally rigid heavy cuts, or the part can be handed off spindle-to-spindle mid-cycle.
• Mazatrol Fusion 640T control. Conversational Mazatrol programming plus EIA/ISO — one of the fastest CAM-free ways to program complex turn-mill parts in the industry.
• C-axis on both spindles. Full spindle indexing at 0.001° for precise angular positioning and milling.

Loaded with tooling

The machine ships with a substantial tooling package installed and ready to run. Highlights visible in the machine include:

• Two MicroCentric CB42-VA pull-back collet chucks — one on each spindle, made in USA. MicroCentric collet chucks are a premium upgrade over standard 3-jaw work for bar-fed production; excellent runout, high grip, quick collet changes. Serial no. 40248 visible on the primary chuck.
• Standard 6″ 3-jaw hydraulic chucks also available for jaw-work.
• Live tooling stations in both 12-position turrets — visible drills, drivers, and holders in the work zone.
• Bar puller.
• Static turning tools in multiple stations.

Typical applications

• High-volume production of small to mid-size turned-and-milled parts
• Aerospace components — brackets, fittings, hydraulic bodies
• Medical device components — precision turned parts with cross-drilled features
• Firearms components
• Automotive shafts, fittings, and precision bar-work
• Fluid power components — valves, manifolds, fittings
• Any shop currently running two lathes plus a mill to finish a part — the 6100Y consolidates that workflow into one cycle

Factory specifications

Factory technical data is available on the Mazak Corporation product catalog. General 6100Y specifications (subject to buyer verification on inspection):

• Max swing: 9.06″
• Max turning diameter: 9.06″
• Max cutting length (shaft work): ~14.5″
• Distance between spindles (both at home): ~40″
• Spindle nose (both): A2-5
• Spindle bore (both): 2.4″
• Bar capacity (both): 1.65″ standard (2″ option)
• Spindle speed (both): 6,000 RPM
• Standard chuck (both): 6″ 3-jaw hydraulic
• Turrets: Two 12-position drum turrets
• Y-axis travel: ±1.5″ (±1.57″ per some configurations)
• Rotary tool speed: 4,500 RPM
• C-axis: 0.001° indexing on both spindles
• Control: Mazatrol Fusion 640T

Why this 6100Y is priced above bare-floor units

You’ll see other 6100Y machines advertised at lower price points on the dealer market. Here’s what sets this one apart:

• Two MicroCentric CB42-VA collet chucks included. MicroCentric pull-back collet chucks are premium made-in-USA workholding — commonly $8,000–$12,000 each new. Two of them, matched to each spindle, is roughly $15,000–$20,000 of high-end tooling that ships with the machine.
• Low hours on a 2005 machine. Most used 6100Ys on the market are 2001–2003 vintage with unknown or high hours. Mint condition with low hours is uncommon in this platform.
• Loaded with live tooling. Live-tool holders in the turret positions, bar puller, and static turning tools installed and ready to run — not a bare-frame machine that needs a $10,000+ tooling package to make first chips.
• Direct-from-owner. Buying from us skips the 20–40% dealer margin that gets added when the same machine gets flipped through a broker.

Sale terms

• Seller: King Precision — Erie, PA
• Condition: Mint / excellent
• Hours: Low
• Includes: Machine and installed tooling package as shown (two MicroCentric CB42-VA collet chucks, live tooling, bar puller)
• Guarantee: 30-day guarantee
• Buyer’s inspection: Welcome by appointment
• Sale type: Direct-from-owner, no broker markup

Request pricing or schedule an inspection

Interested in this 2005 Mazak Multiplex 6100Y, or want to schedule an inspection? Reach out through the RFQUSA contact form and mention “Mazak 6100Y” or “twin-spindle CNC lathe” in your message, and we’ll route it to the seller directly.
